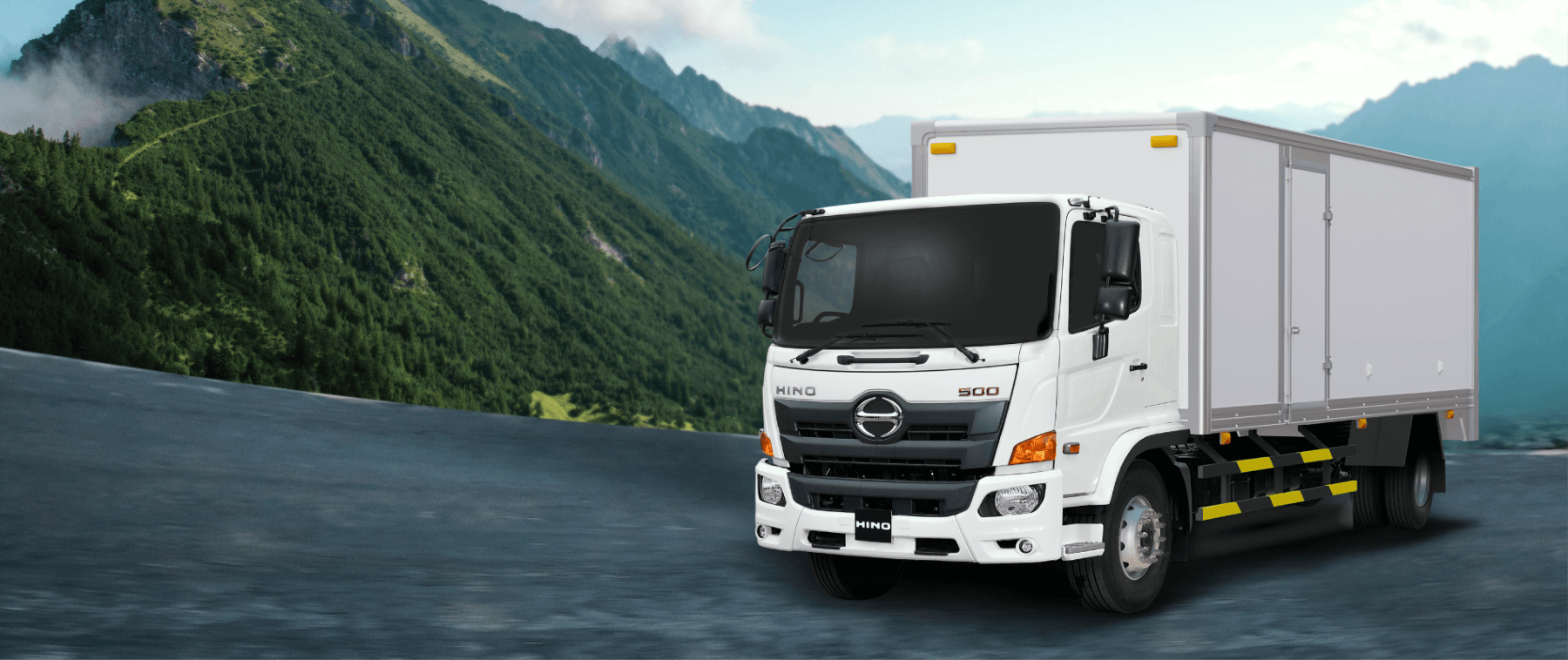

Hino Series 500
MODEL FM8JW8A-XHV-CS – 24 TONS

The Hino Series 500 truck is the top choice for heavy-duty transport, designed with advanced technology and Euro5 emission standards to minimize environmental pollution. Developed based on cutting-edge technology and global testing, the Hino Series 500 offer powerful engine performance, fuel efficiency, and reduced harmful emissions. With our dedicated after-sales support system, we ensure that you always receive the best service. Choose the Hino Series 500 to experience a reliable and environmentally friendly transport solution.

car-intro

FM8JW8A-XHV-CS – 24 TONS

280 PS
  • Gross Weight: 24,000 (design 26,000) KG
  • Payload: Up to 15,000 KG
  • Chassis Mass: 8,060 KG
  • Engine J08E – WA Euro5, 280 PS , 883 N.m
  • Fuel tank: 200 L
  • Air conditioner Denso with AM / FM Radio, AUX
Engine with the SCR system, ensures Euro5 emission standards

Engine with the SCR system, ensures Euro5 emission standards

Non ri-vet frame, provide customer easier body mounting

Non ri-vet frame, provide customer easier body mounting

More comfortable because of full floating cabin, electrical oil-pump type

More comfortable because of full floating cabin, electrical oil-pump type

More safety because of full air brake

More safety because of full air brake

Safety and fuel consumption with tubeless tires for selected models

Safety and fuel consumption with tubeless tires for selected models

Set air conditioner as high standard

Set air conditioner as high standard

2 driving axies

2 driving axies

Specification

Series:
Model:
Gross Weight (Kg)
24,000 (design 26,000)
Cabin chassis Weight (Kg)
8,060

Dimension

Wheelbase (mm)
5,830 + 1,350
Overall (mm)
11,600 x 2,490 x 2,760
Cabin to End of Frame (mm)
9,425

Engine & Transmission

Model
Diesel engine J08E - WA, in-line 6-cylinder, water cooled, turbo charged and intercooled with SCR system
Max Power (ISO NET)
280 PS (at 2,500 round/minute)
Max Torque (ISO NET)
883 N.m (at 1,500 round/minute)
Piston displacement (cc)
7,684
Fuel injection
Electronic control common rail type
